Pipe Quality Inspection

What We Do

Pipe quality failures discovered after delivery are expensive. By that point, import duties may already be paid, freight is spent, the project schedule is exposed, and the supplier has far less incentive to fix the problem quickly. Pre-shipment inspection catches measurable issues at the factory before the container is loaded and before the final balance is released.

This service is designed for buyers who already have a supplier, purchase order, or production batch and need an independent China-side check. It can be used as a standalone inspection or as part of a sourcing workflow with factory audit, sample verification, and payment milestone control.

When To Inspect

Inspection should be scheduled when production is complete or when a meaningful batch is ready for sampling. For large orders, we can also split inspection into in-production and pre-shipment stages. That helps catch wall thickness, marking, or material documentation issues before the full order is finished.

If the balance payment is tied to inspection, the PO should say so clearly. The buyer should not rely on a verbal promise that “inspection is fine before shipment.” We help structure the inspection point so the supplier understands what must be ready, what documents are needed, and what happens if non-conformities are found.

What We Check

Dimensional verification

• Outside diameter per ISO 3126 (multiple measurement points per pipe)
• Wall thickness — minimum wall thickness must meet SDR specification
• Pipe length verification
• Roundness / ovality at pipe ends

Visual inspection

• Surface finish: smooth bore, no blisters, pits, or extrusion marks exceeding tolerance
• Colour consistency (important for gas-grade yellow stripe pipes)
• End squareness for butt-fusion compatibility

Hydrostatic pressure test (sampling)

• Test pressure per ISO 1167 at specified temperature
• Pass/fail documentation with test parameters

Material and certification check

• Verify resin batch numbers against material test certificates
• Confirm ISO 4427 certification covers the DN and SDR being shipped

Sampling Method

The sampling plan depends on order value, product risk, pipe size, and buyer requirements. For routine shipments, we use a practical batch sampling approach focused on high-risk dimensions and visible defects. For project-critical orders, we can apply an AQL-style sampling plan and document how samples were selected.

The important point is sample control. If the supplier chooses only the best pieces, the report is weak. We record batch location, pipe markings, photos, and measured values so the inspection can be connected to the goods being loaded. For higher-risk orders, we can witness sample sealing and coordinate third-party laboratory testing.

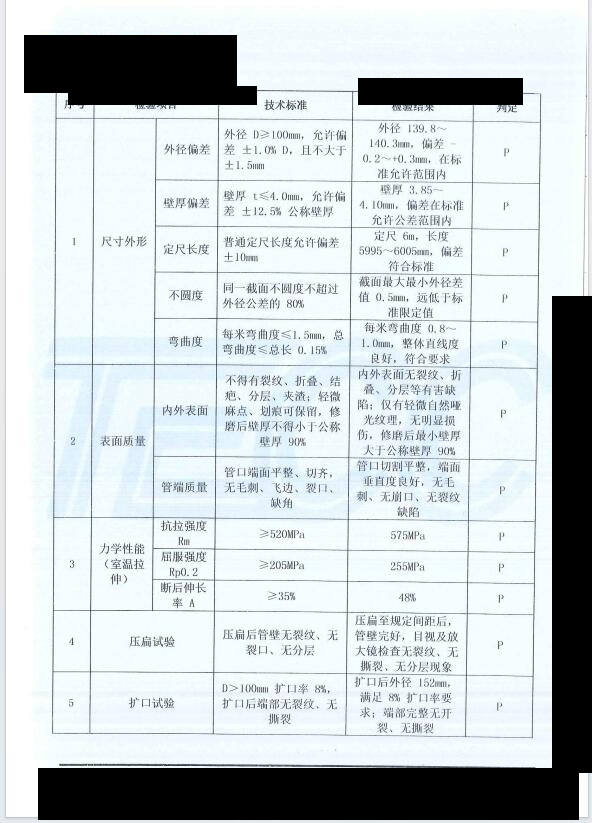

Documentation Example

Actual third-party test reports are issued by the laboratory, not by HausPipes. We coordinate sampling, supplier follow-up, and buyer-side review so the report can be checked against the order specification before shipment.

Buyer name, supplier identity, report number, issuer contact details, signatures, and stamps are redacted in this public example. Final acceptance always depends on the actual order specification and laboratory result.

View the full redacted report example →

What You Get

• Dimensional report with measurements per sampled pipe
• Hydrostatic test results
• Photo documentation
• Pass/fail recommendation issued within 24 hours of inspection
• Non-conformance report if failures are found
• Buyer-side comments explaining whether issues are critical, correctable, or acceptable by waiver
• Loading release recommendation when the shipment matches the agreed specification

Common Problems We Catch

• Wall thickness at the lower tolerance edge or below the required SDR
• Pipe markings that do not match ISO 4427, project requirements, or purchase order wording
• Mixed batches, missing resin certificates, or inconsistent material traceability
• Visual defects such as scratches, ovality, end damage, bubbles, pits, or poor cut quality
• Incomplete pressure test records or reports that do not match the actual DN and SDR shipped
• Supplier documents that look complete but cannot be tied back to the loaded goods

What Happens If Inspection Fails

A failed inspection does not always mean the order must be cancelled. We separate critical failures from correctable issues. Critical failures include wrong material, wrong pressure class, insufficient wall thickness, or certification mismatch. Correctable issues may include markings, packing, missing documents, or partial replacement. We summarize the commercial options so you can decide whether to release payment, request rework, expand sampling, or hold the shipment.

Pricing

• Per inspection visit: $200–400 (covers one batch / one container load)
• Three-stage package: $500–900 (pre-production, in-production, pre-shipment)
• Included in full-commission engagements

Related Guidance

For sampling logic, read AQL inspection for pipe imports. For report interpretation, see the redacted third-party pipe test report example.
